Creating a generic Module Center module¶

At some point your module might need some kind of configuration page for your module. Using the GXModule.json file in the root directory of your module, you can define an automatically created configurations page that can be accessed by our Module Center.

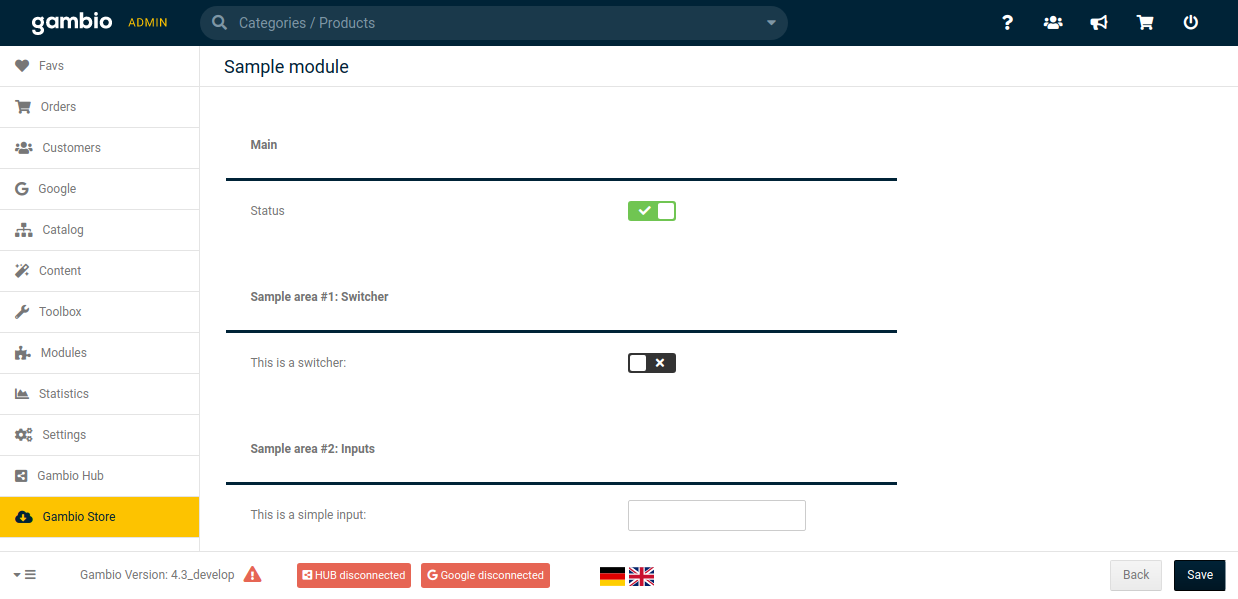

If you take a closer look at the following example configuration page, you can see that there are multiple sections that include several configurations, which have specific types and parameters.

Defining sections¶

To start with everything is based on the JSON structure of the GXModule.json file, with the configuration attribute.

{
    "title": "sample_module.module_title",
    "description": "sample_module.module_description",
    "forceIncludingFiles": false,
    "configuration": [
        {
            "title": "sample_module.section_title",
            "fields": {}
        }
    ]
}

Each JSON object inside the configuration array defines a section of the configuration page. Similar to the title attribute, each of these JSON object inside the configuration array reference their title the same way. Using the fields object you can define the specific configurations that belong to this section. More information about defining configurations will be given in the next part.

Besides these two attributes, there is also another optional attribute called tab that references a text phrase (like the title and description attributes). If you add this attribute, a tab will be added to the configuration page and this tab will only contain the sections with the same reference.

{
    "title": "sample_module.module_title",
    "description": "sample_module.module_description",
    "forceIncludingFiles": false,
    "configuration": [
        {
            "title": "sample_module.section_title_1",
            "tab": "sample_module.tab_title_1",
            "fields": {}
        },
        {
            "title": "sample_module.section_title_2",
            "tab": "sample_module.tab_title_1",
            "fields": {}
        },
        {
            "title": "sample_module.section_title_3",
            "tab": "sample_module.tab_title_2",
            "fields": {}
        },
        {
            "title": "sample_module.section_title_4",
            "fields": {}
        }
    ]
}

If some sections do have a tab attribute and some don't, then all sections without this attribute will be grouped by a General (or in German Allgemein) tab.

Defining configurations¶

Configurations itself can be defined by using the fields attribute inside the JSON object for describing the sections. Therefore, you have two possibilities to select one of many configuration types and use parameters to change this configuration regarding your needs. Defining a configuration named sampleConfig, a simple input value, looks like this:

{
    "title": "sample_module.module_title",
    "description": "sample_module.module_description",
    "forceIncludingFiles": false,
    "configuration": [
        {
            "title": "sample_module.section_title",
            "fields": {
                "sampleConfig": {
                    "type": "text",
                    "label": "sample_module.input_field"
                }
            }
        }
    ]
}

The type attribute defines the type of the configuration and label references a text phrase. The key sampleConfig is used for identifying, storing and reading the configuration and its given value. How to get a specific configuration value will be explained in the chapter [Reading configuration values].

The following part lists the available types, provides examples how to define them and lists all (optional) parameters that can be used to modify the configuration.

Configuration types¶

Switcher¶

{
    "configuration": [
        {
            "title": "sample_module.section_switcher",
            "fields": {
                "sampleSwitcher": {
                    "type": "checkbox",
                    "label": "sample_module.label_switcher"
                }
            }
        }
    ]
}

Optional parameters:

• default_value
• required
• tooltip

Simple input field¶

{
    "configuration": [
        {
            "title": "sample_module.section_inputs",
            "fields": {
                "sampleInput": {
                    "type": "text",
                    "label": "sample_module.label_input"
                }
            }
        }
    ]
}

Optional parameters:

• default_value
• readonly
• regex
• required
• tooltip

Password input field¶

{
    "configuration": [
        {
            "title": "sample_module.section_inputs",
            "fields": {
                "samplePassword": {
                    "type": "password",
                    "label": "sample_module.label_password"
                }
            }
        }
    ]
}

Optional parameters:

• regex
• required
• tooltip

Email input field¶

{
    "configuration": [
        {
            "title": "sample_module.section_inputs",
            "fields": {
                "sampleEmail": {
                    "type": "email",
                    "label": "sample_module.label_email"
                }
            }
        }
    ]
}

Optional parameters:

• default_value
• readonly
• regex
• required
• tooltip

Numeric input field¶

{
    "configuration": [
        {
            "title": "sample_module.section_inputs",
            "fields": {
                "sampleNumber": {
                    "type": "number",
                    "label": "sample_module.label_number"
                }
            }
        }
    ]
}

Optional parameters:

• default_value
• max
• min
• readonly
• regex
• required
• step
• tooltip

Color picker¶

{
    "configuration": [
        {
            "title": "sample_module.section_inputs",
            "fields": {
                "sampleColor": {
                    "type": "color",
                    "label": "sample_module.label_color"
                }
            }
        }
    ]
}

Optional parameters:

• default_value
• required
• tooltip

Date picker¶

{
    "configuration": [
        {
            "title": "sample_module.section_inputs",
            "fields": {
                "sampleDate": {
                    "type": "date",
                    "label": "sample_module.label_date"
                }
            }
        }
    ]
}

Optional parameters:

• default_value
• readonly
• required
• tooltip

Date and time picker¶

{
    "configuration": [
        {
            "title": "sample_module.section_inputs",
            "fields": {
                "sampleDateTime": {
                    "type": "datetime",
                    "label": "sample_module.label_datetime"
                }
            }
        }
    ]
}

Optional parameters:

• default_value
• readonly
• required
• tooltip

File update¶

{
    "configuration": [
        {
            "title": "sample_module.section_inputs",
            "fields": {
                "sampleFile": {
                    "type": "file",
                    "label": "sample_module.label_file",
                    "folder": "images"
                }
            }
        }
    ]
}

Necessary parameters:

• folder: Destination directory for the updated file, based on the root directory of the shop.

Optional parameters:

• accept
• tooltip

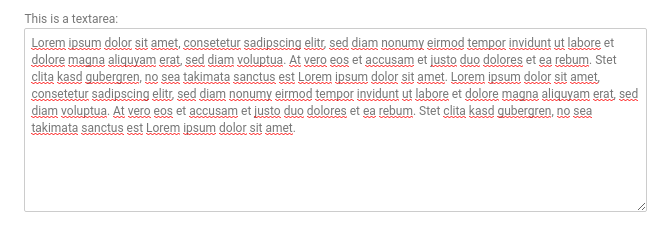

Textarea¶

{
    "configuration": [
        {
            "title": "sample_module.section_inputs",
            "fields": {
                "sampleTextarea": {
                    "type": "textarea",
                    "label": "sample_module.label_textarea"
                }
            }
        }
    ]
}

Optional parameters:

• default_value
• readonly
• required
• tooltip

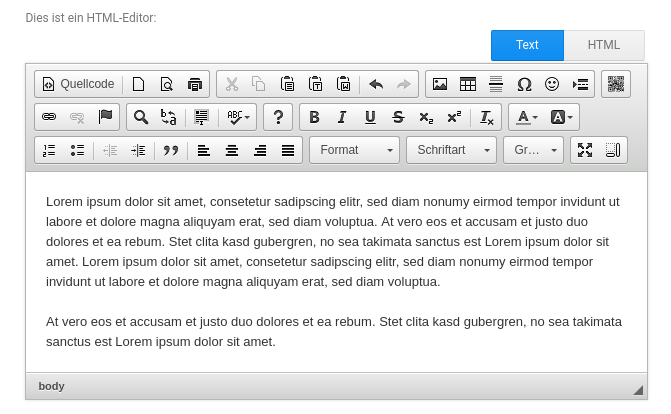

HTML Editor¶

{
    "configuration": [
        {
            "title": "sample_module.section_inputs",
            "fields": {
                "sampleEditor": {
                    "type": "editor",
                    "label": "sample_module.label_editor"
                }
            }
        }
    ]
}

Optional parameters:

• default_value
• readonly
• required
• tooltip

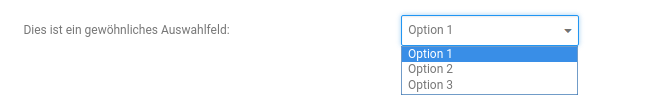

Dropdown¶

{
    "configuration": [
        {
            "title": "sample_module.section_selects",
            "fields": {
                "sampleSelect": {
                    "type": "select",
                    "label": "sample_module.label_select",
                    "values": [
                        {
                            "value": "value1",
                            "text": "sample_module.option_value1"
                        },
                        {
                            "value": "value2",
                            "text": "sample_module.option_value2"
                        },
                        {
                            "value": "value2",
                            "text": "sample_module.option_value3"
                        }
                    ]
                }
            }
        }
    ]
}

Necessary parameters:

• values: Contains a list of all available items. The value attribute defines the value of the item and the text attribute references a text phrase.

Optional parameters:

• default_value
• required
• tooltip

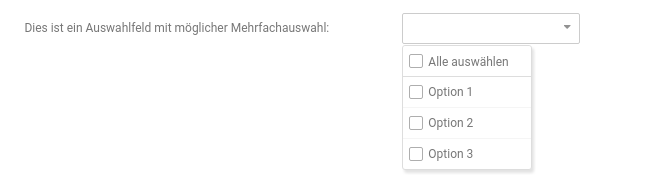

Dropdown with multi select¶

{
    "configuration": [
        {
            "title": "sample_module.section_selects",
            "fields": {
                "sampleMultiSelect": {
                    "type": "multiselect",
                    "label": "sample_module.label_multiselect",
                    "values": [
                        {
                            "value": "value1",
                            "text": "sample_module.option_value1"
                        },
                        {
                            "value": "value2",
                            "text": "sample_module.option_value2"
                        },
                        {
                            "value": "value2",
                            "text": "sample_module.option_value3"
                        }
                    ]
                }
            }
        }
    ]
}

Necessary parameters:

• values: Contains a list of all available items. The value attribute defines the value of the item and the text attribute references a text phrase.

Optional parameters:

• default_value
• selected
• required
• tooltip

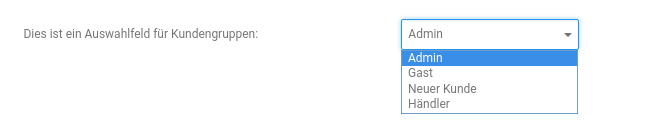

Customer groups¶

{
    "configuration": [
        {
            "title": "sample_module.section_selects",
            "fields": {
                "sampleCustomerGroup": {
                    "type": "customer_group",
                    "label": "sample_module.label_customer_group"
                }
            }
        }
    ]
}

Optional parameters:

• default_value
• required
• tooltip

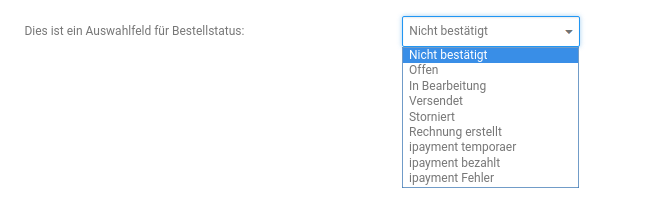

Order status¶

{
    "configuration": [
        {
            "title": "sample_module.section_selects",
            "fields": {
                "sampleOrderStatus": {
                    "type": "order_status",
                    "label": "sample_module.label_order_status"
                }
            }
        }
    ]
}

Optional parameters:

• default_value
• required
• tooltip

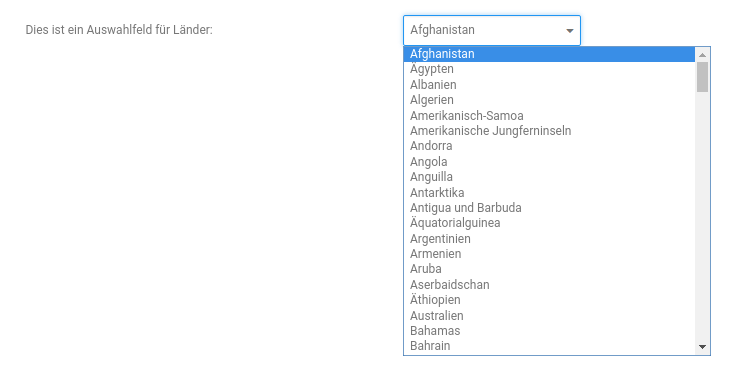

Countries¶

{
    "configuration": [
        {
            "title": "sample_module.section_selects",
            "fields": {
                "sampleCountryList": {
                    "type": "countries",
                    "label": "sample_module.label_countries"
                }
            }
        }
    ]
}

Optional parameters:

• default_value
• required
• tooltip

Languages¶

{
    "configuration": [
        {
            "title": "sample_module.section_selects",
            "fields": {
                "sampleLanguage": {
                    "type": "languages",
                    "label": "sample_module.label_languages"
                }
            }
        }
    ]
}

Optional parameters:

• default_value
• required
• tooltip

AJAX button¶

{
    "configuration": [
        {
            "title": "sample_module.section_buttons",
            "fields": {
                "sampleAjaxButton": {
                    "type": "button",
                    "label": "sample_module.label_button_ajax",
                    "text": "sample_module.text_button_ajax",
                    "action": {
                        "controller": "SampleButtonController",
                        "method": "sampleAction",
                        "message": "sample_module.text_success_button_ajax"
                    }
                }
            }
        }
    ]
}

Necessary parameters:

• action: Defines the AJAX action that's triggered after clicking the button.
• controller: Defines the controller class that is to be called.
• method: Defines the method of the controller class that is to be called.
• message: References the text phrase for the success message that is to be be shown.

Optional parameters:

• color
• tooltip

Notice: The first provided argument to the called controller method contains all form data of the configuration page. For an easier handling, you can extend from the \GXModuleController class.

Modal button¶

{
    "configuration": [
        {
            "title": "sample_module.section_buttons",
            "fields": {
                "sampleModalButton": {
                    "type": "button",
                    "label": "sample_module.label_button_modal",
                    "text": "sample_module.text_button_modal",
                    "modal": "sampleModal"
                }
            }
        }
    ]
}

Necessary parameters:

• text: References the text phrase that is to be used as the modal text.
• modal: Defines which modal is to be shown.

Optional parameters:

• color
• tooltip

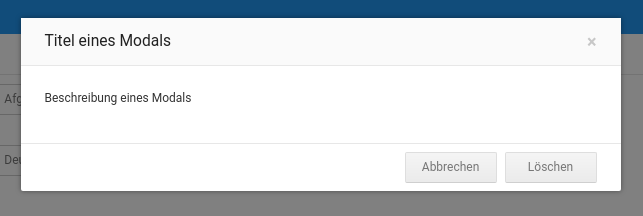

Modal with simple text¶

{
    "configuration": [
        {
            "title": "sample_module.section_buttons",
            "fields": {
                "sampleModal": {
                    "type": "modal",
                    "title": "sample_module.modal_title_sample_modal",
                    "description": "sample_module.modal_description_sample_modal",
                    "buttons": {
                        "close": {
                            "text": "buttons.cancel"
                        },
                        "delete": {
                            "text": "buttons.delete",
                            "action": {
                                "controller": "SampleButtonController",
                                "method": "someAction",
                                "message": "sample_module.text_success_button_modal"
                            }
                        }
                    }
                }
            }
        }
    ]
}

Necessary parameters:

• title: References the text phrase that is to be used as the modal title.
• description: References the text phrase that is to be used as the modal text.
• buttons: Defines the available buttons.
• close, delete: Name of the available buttons.
• action: (Optional) Defines the AJAX action that's triggered after clicking the button. If this attribute is missing, the modal will be closed after clicking the button.
  • controller: (Optional) Defines the controller class that is to be called.
  • method: (Optional) Defines the method of the controller class that is to be called.
  • message: (Optional) References the text phrase for the success message that is to be shown.

Optional parameters:

• color

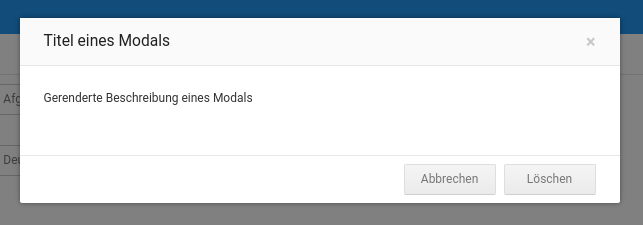

Modal with rendered HTML¶

{
    "configuration": [
        {
            "title": "sample_module.section_buttons",
            "fields": {
                "sampleModal2": {
                    "type": "modal",
                    "title": "sample_module.modal_title_sample_modal",
                    "content": "Vendor/Module/Admin/Html/modal_content.html",
                    "buttons": {
                        "close": {
                            "text": "buttons.cancel"
                        },
                        "delete": {
                            "text": "buttons.delete",
                            "action": {
                                "controller": "SampleButtonController",
                                "method": "someAction",
                                "message": "sample_module.text_success_button_modal"
                            }
                        }
                    }
                }
            }
        }
    ]
}

Necessary parameters:

• content: References the HTML file that is to be rendered.
• buttons: Defines the available buttons.
• close, delete: Name of the available buttons.
• action: (Optional) Defines the AJAX action that's triggered after clicking the button. If this attribute is missing, the modal will be closed after clicking the button.
  • controller: (Optional) Defines the controller class that is to be called.
  • method: (Optional) Defines the method of the controller class that is to be called.
  • message: (Optional) References the text phrase for the success message that is to be shown.

Optional parameters:

• color

Optionale parameters¶

accept¶

Defines the accepted file extensions for an uploading file.

{
    "configuration": [
        {
            "title": "sample_module.section_optionals",
            "fields": {
                "sampleOptionalAccept": {
                    "type": "file",
                    "label": "sample_module.label_optional_accept",
                    "folder": "images",
                    "accept": "image/*"
                }
            }
        }
    ]
}

color¶

Defines the color of the button. Possible values are: default, primary, success, info, warning, danger, and link.

{
    "configuration": [
        {
            "title": "sample_module.section_optionals",
            "fields": {
                "sampleOptionalColor": {
                    "type": "button",
                    "label": "sample_module.label_button_modal",
                    "text": "sample_module.text_button_modal",
                    "modal": "sampleModal",
                    "color": "warning"
                }
            }
        }
    ]
}

default_value¶

Defines the default value of the configuration.

{
    "configuration": [
        {
            "title": "sample_module.section_optionals",
            "fields": {
                "sampleOptionalDefaultValue": {
                    "type": "text",
                    "label": "sample_module.label_input",
                    "default_value": "Lorem ipsum …"
                }
            }
        }
    ]
}

max¶

Defines the maximal value of a numeric input field.

{
    "configuration": [
        {
            "title": "sample_module.section_optionals",
            "fields": {
                "sampleOptionalMax": {
                    "type": "number",
                    "label": "sample_module.label_number",
                    "max": 50
                }
            }
        }
    ]
}

min¶

Defines the minimal value of a numeric input field.

{
    "configuration": [
        {
            "title": "sample_module.section_optionals",
            "fields": {
                "sampleOptionalMix": {
                    "type": "number",
                    "label": "sample_module.label_number",
                    "mix": 50
                }
            }
        }
    ]
}

regex¶

Defines a pattern for the input value that needs to be matched.

{
    "configuration": [
        {
            "title": "sample_module.section_optionals",
            "fields": {
                "sampleOptionalRegex": {
                    "type": "text",
                    "label": "sample_module.label_input",
                    "regex": "[0-9()-\\+\\s]+"
                }
            }
        }
    ]
}

required¶

Defines if this input field is required.

{
    "configuration": [
        {
            "title": "sample_module.section_optionals",
            "fields": {
                "sampleOptionalRequired": {
                    "type": "text",
                    "label": "sample_module.label_input",
                    "required": true
                }
            }
        }
    ]
}

selected¶

Defines the default value for multi select dropdowns (similar to default_value).

{
    "configuration": [
        {
            "title": "sample_module.section_optionals",
            "fields": {
                "sampleOptionalSelected": {
                    "type": "multiselect",
                    "label": "sample_module.label_optional_selected",
                    "values": [
                        {
                            "value": "value1",
                            "text": "sample_module.option_value1"
                        },
                        {
                            "value": "value2",
                            "text": "sample_module.option_value2"
                        },
                        {
                            "value": "value3",
                            "text": "sample_module.option_value3"
                        }
                    ],
                    "selected": [
                        "value1",
                        "value2"
                    ]
                }
            }
        }
    ]
}

step¶

Defines the steps for a numeric input value.

{
    "configuration": [
        {
            "title": "sample_module.section_optionals",
            "fields": {
                "sampleOptionalStep": {
                    "type": "number",
                    "label": "sample_module.label_optional_step",
                    "step": 0.5
                }
            }
        }
    ]
}

tooltip¶

Defines a tooltip.

{
    "configuration": [
        {
            "title": "sample_module.section_optionals",
            "fields": {
                "sampleOptionalTooltip": {
                    "type": "text",
                    "label": "sample_module.label_optional_tooltip",
                    "tooltip": {
                        "type": "info",
                        "text": "sample_module.text_tooltip"
                    }
                }
            }
        }
    ]
}

• type: Defines the type of the tooltip. Possible values are: info und error.
• text: References the text phrase for the tooltip.

Reading a configuration value¶

To get saved configuration values, you need to use the GXModuleConfigurationStorage. The following example shows, how to initialize and request a configuration value.

$configurationStorage = MainFactory::create('GXModuleConfigurationStorage', '<Vendor>/<Module>');
$activeValue = $configurationStorage->get('active');

Please mind, that the second argument of the create method uses placeholders for the vendor and module name.

Type of the return value for each type¶

Detailed example¶

We created a detailed example that contains every possible type:

• Example as ZIP files
